DSP2BP STI/CIS Go/NoGo Privacy |
|
|
|
The
DSP2BP Dedicated Speech Intelligibility Meter measures Sound
Pressure Level and Speech Intelligibility Index in CIS or STI
formats using the OPTion STICistm
Software. The DSP2BP includes OPTion PI Privacy Index. |
|
Features |
|
l |
Portable
digital Speech
Intelligibility/Privacy Meter. |
l |
Displays results in CIS, STI or PI formats. |
l |
Measurements conform to IEC60268-16. |
l |
Factors in the effects of room acoustics and
background noise. |
l |
RS232 computer interface. |
l |
CIS, STI and PI, Intelligibility and Privacy measurement
modes. |
l |
STI-PA Test Tone CD. |
l |
SPL mode. |
l |
Serial Port. |
|

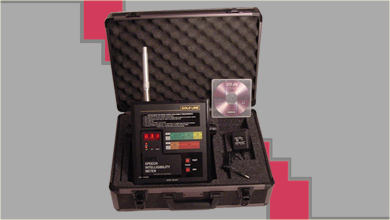

DSP2BP Package Contents: |
l |
Model MK8A - 600 ohm omni-directional electret condenser
instrument microphone. |
l |
OPT STICistm
|
l |
OPT PI firmware.
|
l |
Rugged Carrying Case.
|
|
Accessories: |
l |
Talkbox STI-PA Test Tone Generator |
|
Specifications |
|
Measurement Range: |
25Hz - 20kHz. |
Inputs: |
Microphone:
Balanced, XLR 3 pin receptacle |
Outputs: |
RS232 port:
DB9M |
Accuracy: |
Typically ±1%. |
Display: |
Test Result &
SPL readings are 3 digit via 7 segment LED readout. |
Power
Requirements: |
Batteries:
Eight "AA" alkaline or nicad. |
|
External: 12Vdc @ 500mA
via 2.1mm jack. |
Size (W x H x D): |
10" x 10 ¼" x 2
½" |
Weight: |
2 lbs. |
|
Carry Case - 18" x 13" x
7"; lbs. |
Case Material: |
High Impact ABS. |
Approvals: |
CE, RoHS and WEEE |
|
Emissions: - EN 55022 B -
FCC Class B |
|
Immunity: - EN 55024 B |
|
|
|
E366.803 |
|
IEC 60268-16 |
|
60849 |
|
ANSI S3.05. |
|
|
|
