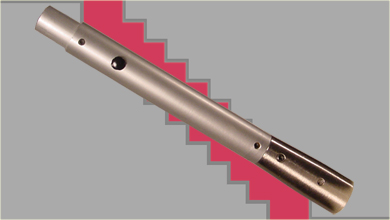

MK8A Microphone 123dB SPL


The MK8A is an Instrument quality microphone for use with Gold Line models DSP30, DSP30RM, DSPCIW, LM27P5 Real Time Analyzers, MX4 Multiplexer and SPL120R SPL Meter. In the field calibration adjustment provided.

Features

Accessories:
l CALMK8A Certification calibration MK8A

Specifications

Cartridge Type: Omni-directional electret condenser.
Sound Input: 123dB SPL maximum.
Output: XLR 3 Pin male. Pin (1) ground, Pin (2) Hot, Pin (3) Neutral.
  Works with: 600 ohm balanced input.
Frequency Response: 20Hz - 20kHz
Power Requirements: 12 -48Vdc phantom
Size (L x Dia): 6" x 5/8" body, " capsule housing
Weight: 2oz.
Housing Material: Silver matte anodized aluminum.
Approvals: CE, RoHS and WEEE
