DSP2B STI/CIS Intelligibility Go/NoGo |
| |
 |
| |
|
The
DSP2B Dedicated Speech Intelligibility Meter measures Sound
Pressure Level and Speech Intelligibility Index in CIS or STI
formats using the OPTion STICistm
Software. DSP2BP includes OPTion PI Privacy Index. |
| |
|
Features |
| |
|
l |
Portable
digital Speech
Intelligibility/Privacy Meter. |
|
l |
Displays results in CIS, STI or PI formats. |
|
l |
Measurements conform to IEC60268-16. |
|
l |
Factors in the effects of room acoustics and
background noise. |
|
l |
RS232 computer interface. |
|
l |
CIS and STI Intelligibility measurement modes. |
|
l |
STI-PA Test Tone CD. |
|
l |
SPL mode. |
|
l |
Serial Port. |
|
|
|

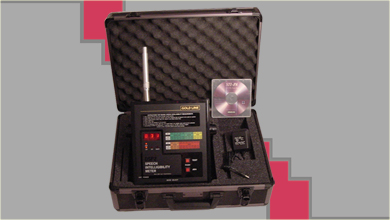

DSP2B Package Contents: |
|
l |
Model MK8A - 600 ohm omni-directional electret condenser
instrument microphone. |
|
l |
OPTSTICistm firmware. |
|
l |
Rugged Carrying Case. |
|
|
|
Accessories: |
|
l |
Talkbox STI-PA Test Tone Generator |
|
l |
CALDSP2B Certification
calibration DSP2B |
| |
|
Specifications |
| |
|
Measurement Range: |
25Hz - 20kHz. |
|
Inputs: |
Microphone:
Balanced, XLR 3 pin receptacle |
|
Outputs: |
RS232 port:
DB9M |
|
Accuracy: |
Typically ±1%. |
|
Display: |
Test Result &
SPL readings are 3 digit via 7 segment LED readout. |
|
Power
Requirements: |
Batteries:
Eight "AA" alkaline or nicad. |
| |
External: 12Vdc @ 500mA
via 2.1mm jack. |
|
Size (W x H x D): |
10" x 10 ¼" x 2
½" |
|
Weight: |
2 lbs. |
| |
Carry Case - 18" x 13" x
7"; lbs. |
|
Case Material: |
High Impact ABS. |
|
Approvals: |
CE, RoHS and WEEE |
| |
Emissions: - EN 55022 B -
FCC Class B |
| |
Immunity: - EN 55024 B |
| |
|
| |
E366.803 |
| |
IEC 60268-16 |
| |
60849 |
| |
ANSI S3.05. |
|
|
|
|
