TS2 Impedance Function

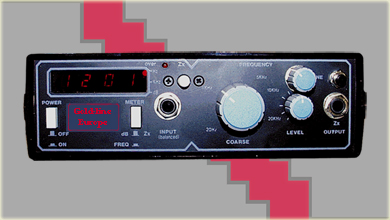

The TS2 is a Portable Audio Test Set incorporating an Oscillator, Frequency Counter, dB Meter and Impedance Meter.

Specifications


Oscillator:



Frequency Range:

10Hz - 30kHz.

Accuracy:

0.1dB from 20Hz - 20kHz.

Output:



Impedance: 50Ω unbalanced  Adjustable output level: -70dBv to +18dBv ref: (0.775V)
Maximum output level: +18dBv @ 2k Ω or greater
[email protected]Ω                            Distortion: < 0.3% THD.

Frequency Counter:



Frequency Response:

1Hz - 99.99kHz

Input Impedance:

>100k (electronically balanced)

Input Level:

 -40dBv to +24dBv ref: (0.775V)

dB Meter:



Meter Range:

 -50dBv to +24dBv ref: (0.775V)

Accuracy:

0.1dB 20Hz - 20kHz @ 0dBv.
  1.5dB 20Hz - 20kHz @ 50dBv.

Adjustable "0" Reference:

 -10dBv to +8dBv (rear panel adjustment).

Impedance Meter:


Impedance Range: 0 - 999 with 0.1 resolution.(Standard version)
  0 - 9999 with 1 resolution above 999. (10k version)

Accuracy:

5%

Display:

Auto-ranging, 4 digit via 7 segment LED.

Connectors:

" phone jacks, TSR.

Power Requirements:

115Vac & 220Vac @ 60Hz, 220Vac @ 50Hz.

Size (W x H x D);

 7- 7/8" x 2-5/8" x 7"
Weight: 2 lbs.

Case Material:

High impact ABS
Front & Rear Panels: Painted Aluminum.
Approvals: CE, RoHS and WEEE
