TS1RMX Rack Mount

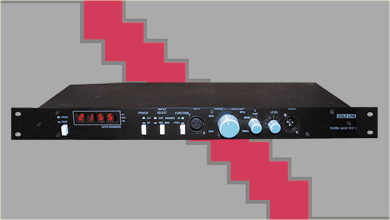

The TS1RMX is an Audio Test Set incorporating an Oscillator, Frequency Counter and dB Meter in a single rack space. The TS1RMX is the balance version which is a 19 inch. rack mount version with XLR connectors front and rear.

Features

l Inputs - Electronically balanced XLRs mounted on both front and rear panels. Isolated from chassis ground and sharing common ground with the output connectors.
l Input Impedance - TS1RMX 100k ohms
l Input Selector - Select between monitoring the Internal Oscillator at the Output Connector or an External Signal at the Input Connector.
l Outputs - Electronically balanced XLRs mounted on both front and rear panels. Isolated from chassis ground and sharing common ground with the input connectors. The front and rear outputs are driven independantly.
l Front/Rear Selector - Select between monitoring the front or rear panel connectors.

Specifications

Oscillator:
Frequency range: 10Hz - 27kHz
Accuracy: ± 0.1dB from 20Hz - 20kHz.
Output impedance: 63.2 ohms (balanced).
Adjustable output level: TS1RMX only: -60dBv to +24dBv ref: (0.775V)
Maximum output level: +24dBv @ 2k ohm or greater, +22dBm @ 600 ohms.
Distortion: < 0.3% THD
Frequency Counter:
Frequency response: 1Hz - 99.99kHz
Input impedance:
 		  > 100k ohms (electronically balanced).
Input level:  -40dBv to +24dBv ref: (0.775V)
dB Meter:
Meter Range: -70dBv to +24dBv ref: (0.775V)
Accuracy: ±0.1dB from 20Hz - 20kHz @ 0dBv
  ±1.5dB from 20Hz - 20kHz @ 50dBv
Adjustable zero reference: -10dBv to +8dBv (rear panel adjustment)
Display: 4 digit via 7 segment LEDs.
Connectors: TS1RMX - XLR 3 pin
Power Requirements: 115Vac @ 60Hz (50Hz internally strappable), 220Vac available

Size (W x H x D):

 19" x 1.75" x 7"
Weight: 3 lbs
Approvals: CE, RoHS and WEEE
  Emissions: - EN 55022 B - FCC Class B
  Immunity: - EN 55024 B
