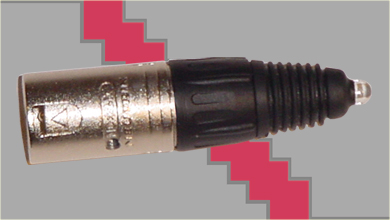

GLPN XLR Pink Noise generator phantom


The GLPN produces levels of plus or minus 1 dB making it an excellent standard for "FLAT" response. With a good pink noise source the user can adjust equalization and speaker crossover points and balance systems. Pink noise is also useful for sound masking systems and to provide greater privacy. It has also been utilized to help employees with Tinnitus. Pink Noise Generator providing continuous pink noise. Whenever the GLPN is connected to a system with Phantom Power, the LED on the back will light. If it does not light then phantom power is not present.

Specifications

Output: Unbalanced 3 pin XLR Male
Output Level: Continuous @ 24.5mV (-32.2dBV)
Frequency Range: 20Hz - 20kHz
Typical Flatness: ±1dB 31Hz - 20kHz; +1/-2dB 25Hz
Power Requirements: 12Vdc - 48Vdc phantom power
Size (W x H x D): 2.75" x .75"
Weight: 2 oz.
Case Material: Die cast body
Approvals: CE, RoHS and WEEE
