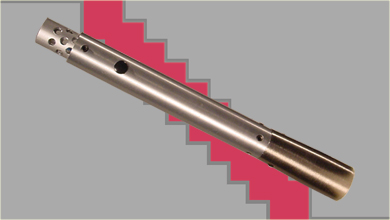

MK8C Cardioid Microphone 123dB SPL


The MK8C features a ½" diameter pre-polarized condenser capsule with an cardioid pattern. It is an instrument quality microphone whose response pattern has been selected for use with TEF Polar ETC software. And the MK8C is an Instrument quality cardioid microphone for use with Gold Line / TEF analyzers. In the field calibration adjustment provided.


Specifications

Frequency Range: 80Hz to 10kHz ±1dB on axis
  60Hz - 13kHz +1 / -3dB on axis
Pickup Pattern: Cardioid
Dynamic Range: 102dB
Open Circuit Sensitivity: 13mV / Pa
Noise Floor: A weighted - 21dBA / Flat - 24dB
Impedance: 200 ohms
Sound Input: 123dB SPL maximum
Output Connector: XLR 3 Pin male. Pin (1) ground, Pin (2) Hot, Pin (3) Neutral
  Works with: 200 ohm balanced input.
Power Requirement: 12 - 48V phantom
Material: Aluminum - Silver matte anodize finish
Cartridge Type: Pre-polarized condenser with cardioid pattern.
Size (L x Dia):  6½" x 5/8" body, ½" capsule housing;
Weight: 2oz.
Approvals: CE, RoHS and WEEE
