SPL120RM3 Rack Mounted 123dB SPL 3 MK8 Mic

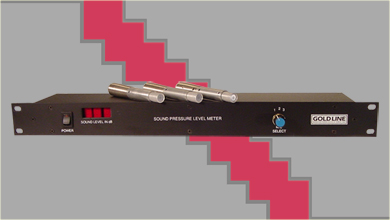

The SPL120RM3 is a Rack mounted sound pressure level meter. Supports up to 3 switchable microphones. Supplied with 3 microphones.

Features

l Sound Pressure Level Meter with three switchable microphone inputs in a single rack space.

SPL120RM3 Package Contents:
  3 pcs. MK8 Mini Microphone 123dB SPL

Specifications

Measurement Range: 47dB - 123dB SPL
Inputs: Three - XLR 3 pin receptacles available, selectable by front panel switch.
  Unit supplied with (3) three Model MK8 600 ohm omnidirectional electret condenser microphones.
Display: 3 digit via 7 segment display
Weighting: IEC A, C and FLAT. Internally selectable.
Time Weighting: RMS Fast.
Attack Time: 0.15s
Power Requirements: External - 12Vdc @ 240mA via 3.5mm jack (battery adapter supplied)
Size (W x H x D): 19" x 1.75" x 4"
Weight: 24 oz.
Case Material: Painted aluminium.
Manual: NL, GB, FR
Approvals: CE, RoHS and WEEE
  Emissions - EN 55022 B - FCC Class B
  Immunity: - EN 55024 B
