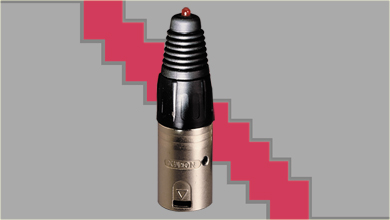

GL1K Microphone Input Tester
The GL1K is a microphone input tester consisting of tone generator and phantom power detector built into a standard 3 pin XLR male connector. When inserted into a microphone input connector, the LED indicator will light showing that there is a phantom power voltage present. If a voltage is present, a 1kHz tone will be sent into the microphone input.
Output: 1kHz @ -48dBm
Distortion: 1.5% nominal
Power Requirements: 12Vdc - 48Vdc phantom power.
Size (L x D): 2.75" x .75"
Weight: 2 oz.
Case Material: Die cast body.
Approvals: CE, RoHS and WEEE
