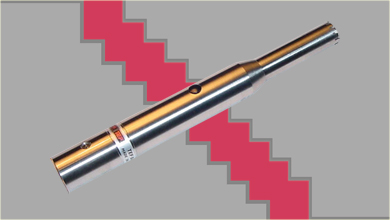

TEF04 Omnidirectional Microphone 123dB SPL |
| |
 |
| |
|
The TEF04(tm) is a omni directional, ½" diameter, electret
condenser microphone suitable for General Purpose acoustical
measurements and Pro Audio applications where a free field omni
pattern is specified. The TEF04 provides levels of accuracy that
meet the frequency response specifications, while providing the ruggedness of
a mylar diaphram for field use. The mic circuit has been
designed to to operate on phantom voltages from the 12vDC
utilized by many RTA's to the 48vDC provided by mixing consoles
and devices. The precision machined stainless steel body
provides exacting dimensions suitable for use with Acoustic
Calibrators. The TEF04 is standard equipment in the Gold Line's ProKIT Measurement Systems. |
| |
|
Features |
| |
|
Accessories: |
|
l |
CALTEF04 Calibration TEF04 |
|
l |
MKCA20 -
Microphone Cable |
|
l |
EZ STAND - Compact microphone stand
with microphone holder. 52" extended, 17" collapsed; 21 oz.
Aluminum with silver matte finish. |
|
l |
TEFCS - TEF USB Preamp Carry Case.
Rugged tech-weave material. Room for your analyzer, mic and
more.Wind Screen |
| |
|
Specifications |
| |
| Frequency Range: |
20Hz to 15kHz ± ½ dB |
| |
15kHz to 20kHz ±1dB |
| Pickup Pattern: |
Omnidirectional |
| Open Circuit Sensitivity: |
9.1mV / Pa |
| Impedance: |
20 ohms |
| Maximum SPL: |
123dB SPL |
| Output Connector: |
XLR 3 Pin male. Pin (1)
ground, Pin (2) Hot, Pin (3) Neutral. |
| Power
Requirement: |
12 - 48V
phantom |
| Size (L x Dia): |
6¼" x 3/4" body, ½"
capsule housing |
| Weight: |
5oz |
| Material: |
Stainless Steel |
| Supplied
With: |
Foam Padded
Carry Case*, Mic Clip*, Wind Screen*, Frequency Plot and
Serial Number. |
| |
* When purchased as
TEF04P (stand-alone microphone). |
| Approvals: |
CE, RoHS and
WEEE |
|
|
|
|
