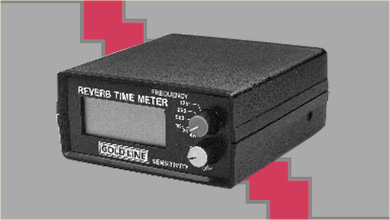

The RT6030 Option measures the reverberation time of a room. The
RT6030 is use with DSP30 analyzer. The
reverberation time is how long it takes for a sound to decay by
60dB in a room. Measurements taken can be stored and printed. No
computer is needed with this option. Measurement Frequencies: 125, 250, 500, 1000, 2000 &
4000Hz. Measurement Range: 0.1 to 10s in 0.01s (1/100ths)
increments. Option Kit Contains: An upgraded EPROM device, a jumper
cable to internally connect the circuit board to the front panel
and a jumper cable to connect the DSP to an external gate source
such as a Gold Line PN3B Pink Noise/Tone Generator.
A front panel overlay is available as a separate option.
